EC2 プレイスメントグループを試してみました
2020/08/12
やったことないのでやってみたやつです。
目次
プレイスメントグループの作成

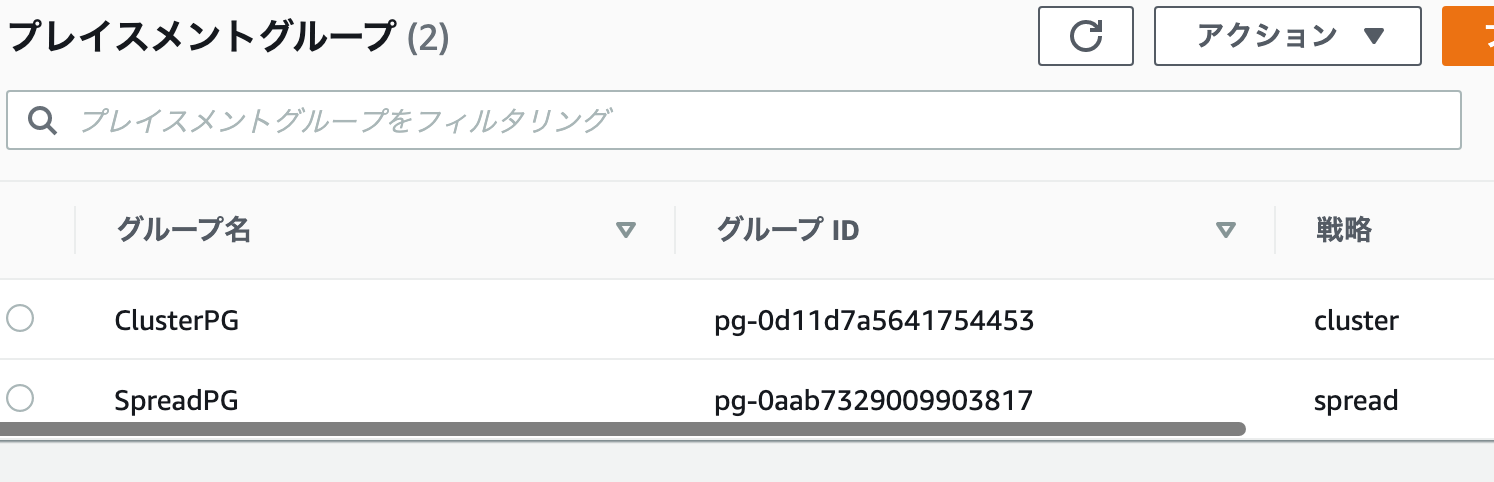

まず、EC2のコンソールでプレイスメントグループをクラスターとスプレッドと2種類作成しました。

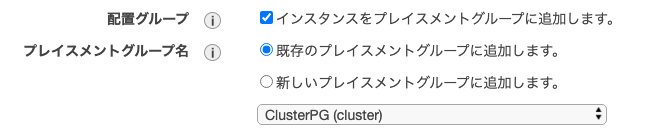

クラスタープレイスメントグループでEC2インスタンスを起動
クラスタープレイスメントグループではインスタンスファミリーが限定されました。
以下でした。
- 汎用: A1、M4、M5、M5a、M5ad、M5d、M5dn、M5n
- コンピューティングの最適化: C3、C4、C5、C5d、C5n、cc2.8xlarge
- メモリ最適化: cr1.8xlarge、R3、R4、R5、R5a、R5ad、R5d、R5dn、R5n、 X1、X1e、z1d
- ストレージの最適化: D2、H1、hs1.8xlarge、I2、I3、I3en
- 高速コンピューティング: F1、G2、G3、G4dn、P2、P3、P3dn
m4.largeで2インスタンス作成しました。
一方のインスタンスからもう一方のインスタンスのプライベートIPアドレス宛にpingを実行してみました。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 |
$ ping 172.31.52.224 PING 172.31.52.224 (172.31.52.224) 56(84) bytes of data. 64 bytes from 172.31.52.224: icmp_seq=1 ttl=255 time=0.211 ms 64 bytes from 172.31.52.224: icmp_seq=2 ttl=255 time=0.140 ms 64 bytes from 172.31.52.224: icmp_seq=3 ttl=255 time=0.142 ms 64 bytes from 172.31.52.224: icmp_seq=4 ttl=255 time=0.143 ms 64 bytes from 172.31.52.224: icmp_seq=5 ttl=255 time=0.142 ms 64 bytes from 172.31.52.224: icmp_seq=6 ttl=255 time=0.138 ms 64 bytes from 172.31.52.224: icmp_seq=7 ttl=255 time=0.145 ms 64 bytes from 172.31.52.224: icmp_seq=8 ttl=255 time=0.143 ms 64 bytes from 172.31.52.224: icmp_seq=9 ttl=255 time=0.148 ms 64 bytes from 172.31.52.224: icmp_seq=10 ttl=255 time=0.141 ms 64 bytes from 172.31.52.224: icmp_seq=11 ttl=255 time=0.145 ms |
スプレッドプレイスメントグループでEC2インスタンスを起動
スプレッドプレイスメントグループは、t3a.nanoでもいいようです。
でも一応同じインスタンスタイプのm4.largeにしてみました。
同じ要領で確認しました。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 |
ping 172.31.56.120 PING 172.31.56.120 (172.31.56.120) 56(84) bytes of data. 64 bytes from 172.31.56.120: icmp_seq=1 ttl=255 time=0.200 ms 64 bytes from 172.31.56.120: icmp_seq=2 ttl=255 time=0.128 ms 64 bytes from 172.31.56.120: icmp_seq=3 ttl=255 time=0.137 ms 64 bytes from 172.31.56.120: icmp_seq=4 ttl=255 time=0.138 ms 64 bytes from 172.31.56.120: icmp_seq=5 ttl=255 time=0.127 ms 64 bytes from 172.31.56.120: icmp_seq=6 ttl=255 time=0.117 ms 64 bytes from 172.31.56.120: icmp_seq=7 ttl=255 time=0.140 ms 64 bytes from 172.31.56.120: icmp_seq=8 ttl=255 time=0.125 ms 64 bytes from 172.31.56.120: icmp_seq=9 ttl=255 time=0.138 ms 64 bytes from 172.31.56.120: icmp_seq=10 ttl=255 time=0.127 ms 64 bytes from 172.31.56.120: icmp_seq=11 ttl=255 time=0.137 ms |
プレイスメントグループ外からの確認

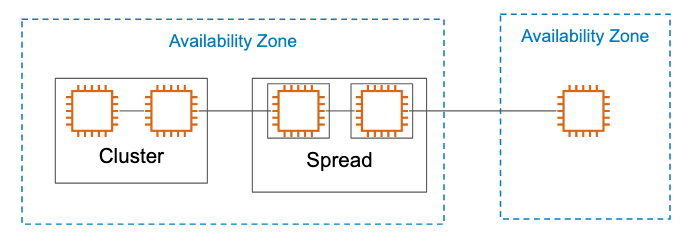

プレイスメントグループではない別インスタンスへも確認します。
クラスター→スプレッド
1 2 3 4 5 6 7 8 9 10 11 12 13 |
$ ping 172.31.61.226 PING 172.31.61.226 (172.31.61.226) 56(84) bytes of data. 64 bytes from 172.31.61.226: icmp_seq=1 ttl=255 time=0.265 ms 64 bytes from 172.31.61.226: icmp_seq=2 ttl=255 time=0.208 ms 64 bytes from 172.31.61.226: icmp_seq=3 ttl=255 time=0.199 ms 64 bytes from 172.31.61.226: icmp_seq=4 ttl=255 time=0.218 ms 64 bytes from 172.31.61.226: icmp_seq=5 ttl=255 time=0.207 ms 64 bytes from 172.31.61.226: icmp_seq=6 ttl=255 time=0.214 ms 64 bytes from 172.31.61.226: icmp_seq=7 ttl=255 time=0.217 ms 64 bytes from 172.31.61.226: icmp_seq=8 ttl=255 time=0.209 ms 64 bytes from 172.31.61.226: icmp_seq=9 ttl=255 time=0.218 ms 64 bytes from 172.31.61.226: icmp_seq=10 ttl=255 time=0.210 ms |
スプレッド→クラスター
1 2 3 4 5 6 7 8 9 10 11 12 13 |
$ ping 172.31.48.179 PING 172.31.48.179 (172.31.48.179) 56(84) bytes of data. 64 bytes from 172.31.48.179: icmp_seq=1 ttl=255 time=0.290 ms 64 bytes from 172.31.48.179: icmp_seq=2 ttl=255 time=0.215 ms 64 bytes from 172.31.48.179: icmp_seq=3 ttl=255 time=0.228 ms 64 bytes from 172.31.48.179: icmp_seq=4 ttl=255 time=0.229 ms 64 bytes from 172.31.48.179: icmp_seq=5 ttl=255 time=0.211 ms 64 bytes from 172.31.48.179: icmp_seq=6 ttl=255 time=0.205 ms 64 bytes from 172.31.48.179: icmp_seq=7 ttl=255 time=0.216 ms 64 bytes from 172.31.48.179: icmp_seq=8 ttl=255 time=0.210 ms 64 bytes from 172.31.48.179: icmp_seq=9 ttl=255 time=0.213 ms 64 bytes from 172.31.48.179: icmp_seq=10 ttl=255 time=0.280 ms |
せっかくなので、別AZに作ったインスタンスからも
1 2 3 4 5 6 7 8 9 10 11 12 13 |
$ ping 172.31.61.226 PING 172.31.61.226 (172.31.61.226) 56(84) bytes of data. 64 bytes from 172.31.61.226: icmp_seq=1 ttl=255 time=0.364 ms 64 bytes from 172.31.61.226: icmp_seq=2 ttl=255 time=0.385 ms 64 bytes from 172.31.61.226: icmp_seq=3 ttl=255 time=0.355 ms 64 bytes from 172.31.61.226: icmp_seq=4 ttl=255 time=0.383 ms 64 bytes from 172.31.61.226: icmp_seq=5 ttl=255 time=0.398 ms 64 bytes from 172.31.61.226: icmp_seq=6 ttl=255 time=0.386 ms 64 bytes from 172.31.61.226: icmp_seq=7 ttl=255 time=0.391 ms 64 bytes from 172.31.61.226: icmp_seq=8 ttl=255 time=0.379 ms 64 bytes from 172.31.61.226: icmp_seq=9 ttl=255 time=0.367 ms 64 bytes from 172.31.61.226: icmp_seq=10 ttl=255 time=0.394 ms |
ちゃんと、効果ありということが確認できました。
最後までお読みいただきましてありがとうございました!
