cfn-initでEC2インスタンスにPHPをインストールしWebサーバーを起動する
2021/08/31
AWS CloudFormation による Amazon EC2 へのアプリケーションのデプロイを参考に実行してみました。
目次
起動するサーバー

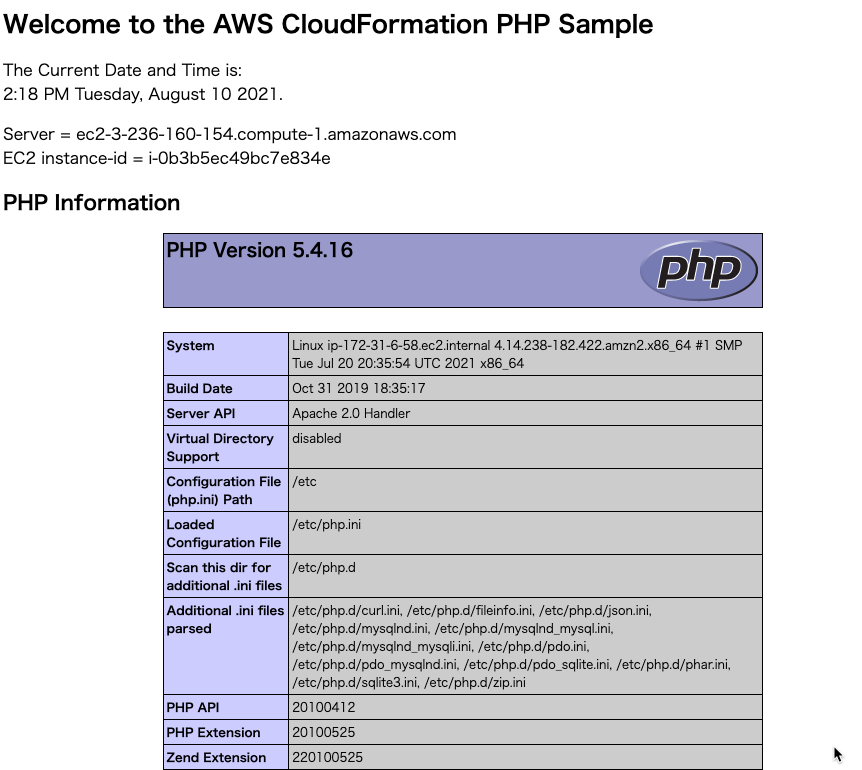

ブラウザからアクセスするとこのような画面が表示されるサーバーが起動します。
cfn-init
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 |
"Resources": { "WebServerInstance": { "Type": "AWS::EC2::Instance", "Metadata": { "AWS::CloudFormation::Init": { "configSets": { "Install": [ "Install" ] }, "Install": { "packages": { "yum": { "httpd": [], "php": [] } }, "files": { "/var/www/html/index.php": { "content": { "Fn::Join": [ ~省略~ ] }, "mode": "000600", "owner": "apache", "group": "apache" } }, "services": { "sysvinit": { "httpd": { "enabled": "true", "ensureRunning": "true" } } } } } }, |
Installでhttpd, phpをインストール。
filesでindex.phpを設定。
servicesでhttpdを起動。
UserData
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 |
"UserData": { "Fn::Base64": { "Fn::Join": [ "", [ "#!/bin/bash -xe\n", "yum install -y aws-cfn-bootstrap\n", "# Install the files and packages from the metadata\n", "/opt/aws/bin/cfn-init -v ", " --stack ", { "Ref": "AWS::StackName" }, " --resource WebServerInstance ", " --configsets Install ", " --region ", { "Ref": "AWS::Region" }, "\n", "# Signal the status from cfn-init\n", "/opt/aws/bin/cfn-signal -e $? ", " --stack ", { "Ref": "AWS::StackName" }, " --resource WebServerInstance ", " --region ", { "Ref": "AWS::Region" }, "\n" ] ] } } |
/opt/aws/bin/cfn-initでcfn-initを実行。
/opt/aws/bin/cfn-signalでデプロイ完了を送信。
CreationPolicy
1 2 3 4 5 6 |
"CreationPolicy": { "ResourceSignal": { "Timeout": "PT5M" } } |
cfn-signalの信号を受け取って、リソース作成完了とする。
テンプレート
行数を減らすためにParameters, Mappingsを極力省いていますので、検証環境向けと捉えてください。
バージニア北部リージョンのAMIを直接記述しています。
Jsonテンプレート
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 |
{ "AWSTemplateFormatVersion": "2010-09-09", "Parameters": { "KeyName": { "Description": "Name of an existing EC2 KeyPair to enable SSH access to the instance", "Type": "AWS::EC2::KeyPair::KeyName", "ConstraintDescription": "Can contain only ASCII characters." } }, "Resources": { "WebServerInstance": { "Type": "AWS::EC2::Instance", "Metadata": { "AWS::CloudFormation::Init": { "configSets": { "Install": [ "Install" ] }, "Install": { "packages": { "yum": { "httpd": [], "php": [] } }, "files": { "/var/www/html/index.php": { "content": { "Fn::Join": [ "", [ "<html>\n", " <head>\n", " <title>AWS CloudFormation PHP Sample</title>\n", " <meta http-equiv=\"Content-Type\" content=\"text/html; charset=ISO-8859-1\">\n", " </head>\n", " <body>\n", " <h1>Welcome to the AWS CloudFormation PHP Sample</h1>\n", " <p/>\n", " <?php\n", " // Print out the current data and time\n", " print \"The Current Date and Time is: <br/>\";\n", " print date(\"g:i A l, F j Y.\");\n", " ?>\n", " <p/>\n", " <?php\n", " // Setup a handle for CURL\n", " $curl_handle=curl_init();\n", " curl_setopt($curl_handle,CURLOPT_CONNECTTIMEOUT,2);\n", " curl_setopt($curl_handle,CURLOPT_RETURNTRANSFER,1);\n", " // Get the hostname of the instance from the instance metadata\n", " curl_setopt($curl_handle,CURLOPT_URL,'http://169.254.169.254/latest/meta-data/public-hostname');\n", " $hostname = curl_exec($curl_handle);\n", " if (empty($hostname))\n", " {\n", " print \"Sorry, for some reason, we got no hostname back <br />\";\n", " }\n", " else\n", " {\n", " print \"Server = \" . $hostname . \"<br />\";\n", " }\n", " // Get the instance-id of the instance from the instance metadata\n", " curl_setopt($curl_handle,CURLOPT_URL,'http://169.254.169.254/latest/meta-data/instance-id');\n", " $instanceid = curl_exec($curl_handle);\n", " if (empty($instanceid))\n", " {\n", " print \"Sorry, for some reason, we got no instance id back <br />\";\n", " }\n", " else\n", " {\n", " print \"EC2 instance-id = \" . $instanceid . \"<br />\";\n", " }\n", " ?>\n", " <h2>PHP Information</h2>\n", " <p/>\n", " <?php\n", " phpinfo();\n", " ?>\n", " </body>\n", "</html>\n" ] ] }, "mode": "000600", "owner": "apache", "group": "apache" } }, "services": { "sysvinit": { "httpd": { "enabled": "true", "ensureRunning": "true" } } } } } }, "Properties": { "ImageId": "ami-0c2b8ca1dad447f8a", "InstanceType": "t3.small", "SecurityGroups": [ { "Ref": "WebServerSecurityGroup" } ], "KeyName": { "Ref": "KeyName" }, "UserData": { "Fn::Base64": { "Fn::Join": [ "", [ "#!/bin/bash -xe\n", "yum install -y aws-cfn-bootstrap\n", "# Install the files and packages from the metadata\n", "/opt/aws/bin/cfn-init -v ", " --stack ", { "Ref": "AWS::StackName" }, " --resource WebServerInstance ", " --configsets Install ", " --region ", { "Ref": "AWS::Region" }, "\n", "# Signal the status from cfn-init\n", "/opt/aws/bin/cfn-signal -e $? ", " --stack ", { "Ref": "AWS::StackName" }, " --resource WebServerInstance ", " --region ", { "Ref": "AWS::Region" }, "\n" ] ] } } }, "CreationPolicy": { "ResourceSignal": { "Timeout": "PT5M" } } }, "WebServerSecurityGroup": { "Type": "AWS::EC2::SecurityGroup", "Properties": { "GroupDescription": "Enable HTTP access via port 80", "SecurityGroupIngress": [ { "IpProtocol": "tcp", "FromPort": "80", "ToPort": "80", "CidrIp": "0.0.0.0/0" }, { "IpProtocol": "tcp", "FromPort": "22", "ToPort": "22", "CidrIp": "0.0.0.0/0" } ] } } }, "Outputs": { "WebsiteURL": { "Description": "URL for newly created LAMP stack", "Value": { "Fn::Join": [ "", [ "http://", { "Fn::GetAtt": [ "WebServerInstance", "PublicDnsName" ] } ] ] } } } } |
Yamlテンプレート
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 |
AWSTemplateFormatVersion: 2010-09-09 Parameters: KeyName: Description: Name of an existing EC2 KeyPair to enable SSH access to the instance Type: 'AWS::EC2::KeyPair::KeyName' ConstraintDescription: Can contain only ASCII characters. Resources: WebServerInstance: Type: 'AWS::EC2::Instance' Metadata: 'AWS::CloudFormation::Init': configSets: Install: - Install Install: packages: yum: httpd: [] php: [] files: /var/www/html/index.php: content: !Join - '' - - | <html> - |2 <head> - |2 <title>AWS CloudFormation PHP Sample</title> - |2 <meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1"> - |2 </head> - |2 <body> - |2 <h1>Welcome to the AWS CloudFormation PHP Sample</h1> - |2 <p/> - |2 <?php - |2 // Print out the current data and time - |2 print "The Current Date and Time is: <br/>"; - |2 print date("g:i A l, F j Y."); - |2 ?> - |2 <p/> - |2 <?php - |2 // Setup a handle for CURL - |2 $curl_handle=curl_init(); - |2 curl_setopt($curl_handle,CURLOPT_CONNECTTIMEOUT,2); - |2 curl_setopt($curl_handle,CURLOPT_RETURNTRANSFER,1); - |2 // Get the hostname of the instance from the instance metadata - |2 curl_setopt($curl_handle,CURLOPT_URL,'http://169.254.169.254/latest/meta-data/public-hostname'); - |2 $hostname = curl_exec($curl_handle); - |2 if (empty($hostname)) - |2 { - |2 print "Sorry, for some reason, we got no hostname back <br />"; - |2 } - |2 else - |2 { - |2 print "Server = " . $hostname . "<br />"; - |2 } - |2 // Get the instance-id of the instance from the instance metadata - |2 curl_setopt($curl_handle,CURLOPT_URL,'http://169.254.169.254/latest/meta-data/instance-id'); - |2 $instanceid = curl_exec($curl_handle); - |2 if (empty($instanceid)) - |2 { - |2 print "Sorry, for some reason, we got no instance id back <br />"; - |2 } - |2 else - |2 { - |2 print "EC2 instance-id = " . $instanceid . "<br />"; - |2 } - |2 ?> - |2 <h2>PHP Information</h2> - |2 <p/> - |2 <?php - |2 phpinfo(); - |2 ?> - |2 </body> - | </html> mode: '000600' owner: apache group: apache services: sysvinit: httpd: enabled: 'true' ensureRunning: 'true' Properties: ImageId: ami-0c2b8ca1dad447f8a InstanceType: t3.small SecurityGroups: - !Ref WebServerSecurityGroup KeyName: !Ref KeyName UserData: !Base64 'Fn::Join': - '' - - | #!/bin/bash -xe - | yum install -y aws-cfn-bootstrap - | # Install the files and packages from the metadata - '/opt/aws/bin/cfn-init -v ' - ' --stack ' - !Ref 'AWS::StackName' - ' --resource WebServerInstance ' - ' --configsets Install ' - ' --region ' - !Ref 'AWS::Region' - |+ - | # Signal the status from cfn-init - '/opt/aws/bin/cfn-signal -e $? ' - ' --stack ' - !Ref 'AWS::StackName' - ' --resource WebServerInstance ' - ' --region ' - !Ref 'AWS::Region' - |+ CreationPolicy: ResourceSignal: Timeout: PT5M WebServerSecurityGroup: Type: 'AWS::EC2::SecurityGroup' Properties: GroupDescription: Enable HTTP access via port 80 SecurityGroupIngress: - IpProtocol: tcp FromPort: '80' ToPort: '80' CidrIp: 0.0.0.0/0 - IpProtocol: tcp FromPort: '22' ToPort: '22' CidrIp: 0.0.0.0/0 Outputs: WebsiteURL: Description: URL for newly created LAMP stack Value: !Join - '' - - 'http://' - !GetAtt - WebServerInstance - PublicDnsName |
最後までお読みいただきましてありがとうございました!
